HY-9800 Horizontal Directional Drilling Rig

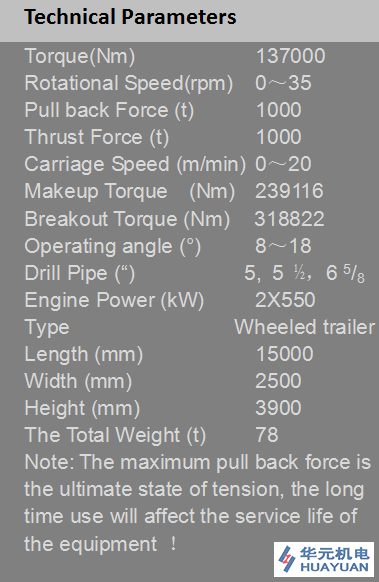

Main Parameters:
? Pull / Push Force: 9800KN/9800KN
? Pull / push Speed: 0～20m/min
? Torque: 240,000N·m (continuously)
? Rotating Speed: 0～35rpm
? Torque of Vice Clamp：318822Nm/25Mpa
? Drill Rod: 5“，5 ?”，6 5/8 ”
? Angle Range: 8°~18°
? Power Consumption of Generator: 550kwX2
? Dimension: 15000×2500×3900
? Weight: 78T
